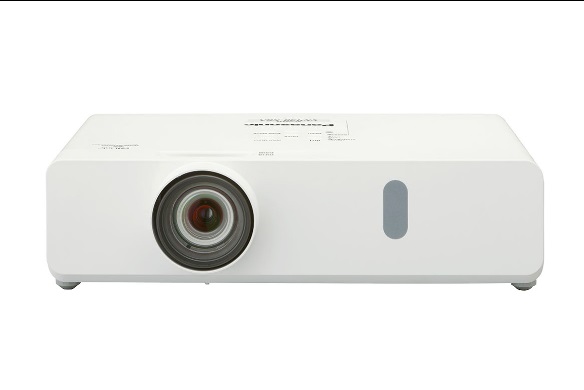

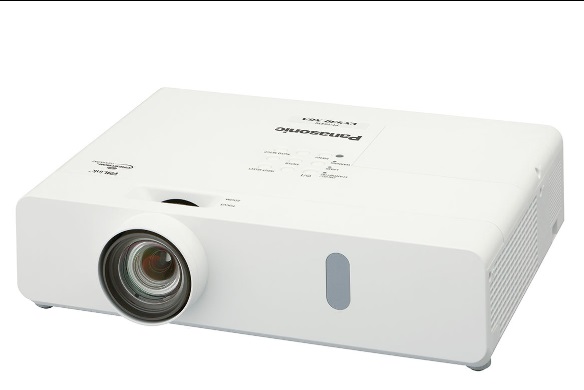

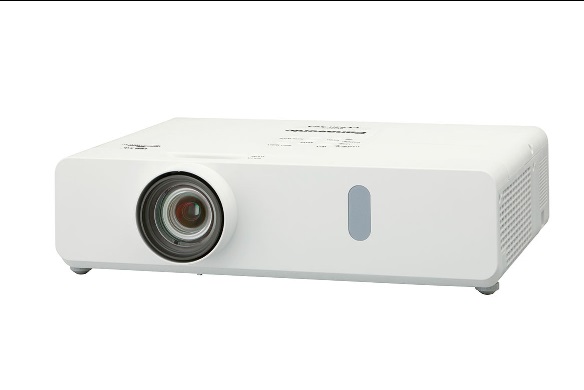

Panasonic PT-VX430 Portable LCD Projector

Flexible and Bright for the Perfect Presentation

The PT-VW360 Series makes point-and-shoot projection easy in any space. With up to 4,500 lm*1 and 20,000:1 Dynamic Contrast, HD images*2 are vivid and sharp. Optional wireless module frees content from cables, while Corner Keystone Correction aligns pictures when projecting off-axis. Working flawlessly for 7,000 hours*3 before servicing, this light but rugged portable hits the ground running for effortless presentation.

PT-VW360

4,000 lm	WXGA (1280 x 800)
20,000:1	Wireless Capability (Option)

PT-VX430

4,500 lm	XGA (1024 x 768)
20,000:1	Wireless Capability (Option)

*1 PT-VX430 only.

*2 PT-VW360 only.

*3 Approximate maximum value with lamp mode set to ECO. Usage environment may affect filter maintenance cycle.

Brilliant Performance from a Compact Body

COLLAPSE ALL

Extremely Bright Images

Despite its light 3.3 kg weight and compact dimensions, the PT-VW360 series outputs up to 4,500 lm* of brightness for spectacularly clear and brilliant images.

* PT-VX430 only.

High 20,000:1 Contrast

A new iris mechanism optimizes light output according to content. Blacks are deep and rich while colors and highlights are reproduced with realism.

7,000 Hours Maintenance-free*

When used for eight hours per day, lamp and filter replacement is not required for up to 7,000 hours* of operation, slashing cost of ownership.

* Approximate maximum value with lamp mode set to ECO. Usage environment may affect filter maintenance cycle.

Quiet Operation

The quiet design keeps noise levels down to a low 29 dB on ECO Mode with the cooling fan hardly audible, minimizing distractions during presentations.

Easy Setup and Management

COLLAPSE ALL

Flexible 1.6x Zoom Lens

When projecting onto a 100-inch-wide screen*, the included 1.6x zoom lens supports a range of projection distances from 2.5 to 4.1 m (8.2 to 13.5 ft).

* PT-VW360 only.

Daylight View Basic

Panasonic’s Daylight View Basic technology achieves sharp, easily viewed images by enhancing detail, particularly in dark areas of the image that are normally difficult to see in brightly lit rooms. A built-in sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness according to the surrounding level of illumination.

Corner Keystone Correction for Angled Projection

If on-site conditions require off-center projection, simply designate four screen corners and Horizontal & Vertical Corner Keystone Correction performs necessary adjustments for a distortion-free image.

Curved Screen Correction

Barrel and pincushion distortions are easily corrected when projecting onto a curved screen surface.

Simple Lamp and Filter Replacement

Lamp and filter are accessed via panels in the top and side of the projector. Periodic maintenance takes moments even with the unit attached to a ceiling-mount bracket.

Practical Features Simplify Daily Usage

COLLAPSE ALL

Project Wirelessly with Optional Module

Now you can project media wirelessly via PC using Presenter Light or Panasonic Wireless Projector application for iOS and Android™. Just connect an optional ET-WML100 Wireless Module to the projector’s USB input.

Note: The availability of the ET-WML100 varies depending on the country.

Presenter Light Ver. 1.0 for Windows® PCs

• Supports images, video, and documents such as PDF and PowerPoint®
• Mirrors PC screen on the big screen
• Project media from up to four PCs simultaneously in Split Screen Mode

Software Download

Note: When using Presenter Light Software, images are projected with 1280 x 800 dots or 1024 x 768 dots onto the screen. Also, your PC display resolution may be forcibly changed, and audio playback disrupted or become noisy, while images and sound are being transmitted.

Wireless Projector for iOS/Android™

Dedicated apps for iOS and Android devices feature simple 3-step initial connection and support the transmission of still images and PDF data.

Application introduction

Note: When using the Wireless Projector app, display resolution differs depending on your iOS device and the display device. The maximum supported display resolution is WXGA (1280 x 800).

Project Wirelessly with Optional Module02

Memory Viewer Light Function

You don't need a computer to start presenting—just insert a USB memory device containing media and start projecting straight away.

Multi Monitoring & Control Software

Panasonic Multi Monitoring & Control Software supports up to 2,048 devices over LAN and features system map visualization or auto-search of devices to be registered. The free software is available with Early Warning functions (automatic free 90-day trial available). These advanced functions enable real-time monitoring, abnormality detection, and notification before servicing is required. Administrators can achieve seamless control and real-time monitoring while preventing potential problems, saving time, and enhancing system reliability.
