Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
Transmit/Receive
2.4GHz 2x2
5GHz 2x2
Processor
Dual-core (4 VPE)
Memory
128 MB Flash
256 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80 MHz bandwidth
Operating Frequency
2.4G Hz / 5 GHz

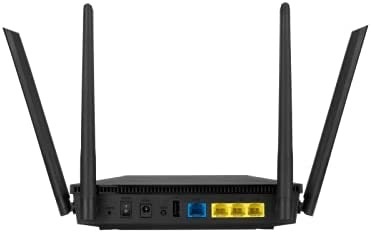

Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3,USB Port x1
Button
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
2.4G x 1
5G x 1
LAN x 3
WAN x 1
USBX1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5A current
Package content
RT-AX53U
RJ45 x1
Adapter x1
QSG x1
Warranty Card x1
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : No
Alexa
Support Alexa skil : Yes
AiProtection
AiProtection : AiProtection Classic
Malicious site blocking : Yes
Two-Way IPS : No
Infected Device Prevention and Blocking ; Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : No
Bandwidth limiter : Yes
Traditional QoS : Yes
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Website history : No
Wireless
IPv6 : Yes
MU-MIMO : Yes
Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal
UTF-8 SSID : Yes
Guest Network : Yes
WPS : Yes
Wi-Fi MAC address filter : Yes
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : Yes
Universal beamforming : Yes
Explicit beamforming : Yes
IGMP snooping : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : Yes
Port triggering : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes
LAN
DHCP Server : Yes
IPTV : Yes
LAN Link Aggregation : No
Manually assign IP address : Yes
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
USB application
3G/4G LTE dongle : Yes
HDD hibernation : Yes
Safely Remove disk : Yes
AiCloud : No
Download master : Yes
AiDisk : Yes
Media Server : Yes
Time Machine : No
Samba Server : Yes
FTP Server : Yes
Shared Folder privileges : Yes
Administration
Operating mode : Access Point, Media Bridge, Repeater, Router
Free OS upgrade : Yes
Firewall : Yes
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
